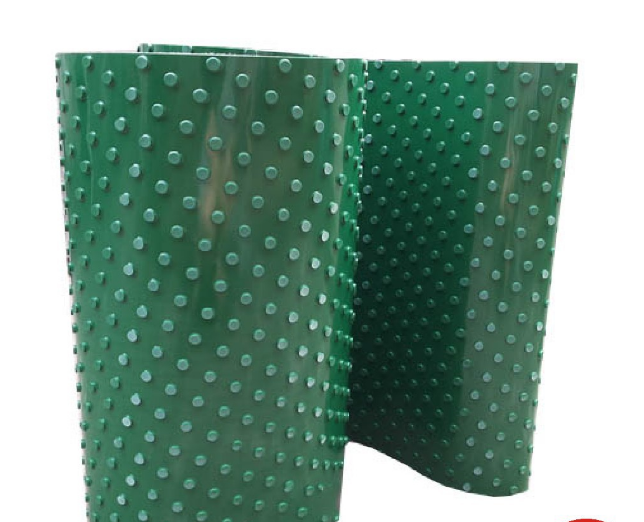

Characteristic: There are granular patterns on the surface of the belt which are higher than the belt body or concave embedded belt body. The pits can also be made into square hole or prism and cloth pattern. Usage: The convex grain pattern is suitable for conveying soft packages or materials with grabbing force (such as cardboard boxes) or non-sliding conveying. The pit-shaped granular pattern is suitable for conveying granular materials with an inclination of less than 45 degrees.

花纹输送带扇形花纹

Fan-shaped pattern of pattern conveyor belt

特征：带面上有呈半扇形（或1/4圆型）花纹。当胶带成槽时花纹合扰成扇形（或半圆形）、属高花纹类。  用途：适用于≤60度大倾角输送粉、颗粒及块状物料。

Characteristic: There is a half sector (or 1/4 circle) pattern on the belt surface. When the tape is grooved, the pattern is fan-shaped (or semi-circular) and belongs to the high pattern category. Usage: Suitable for conveying powder, granules and bulk materials at large inclination (< 60 degrees).

本公司可供应花纹输送带宽度为≤2400mm。

Our company can supply pattern conveyor bandwidth is less than 2400 mm.

花纹输送带是由基带和花纹两部分组成，由于运送物料不同和输送倾角大小不同，要求花纹形状和高度也不同。常用的花纹输送带品种如：人字形花纹输送带、八字形花纹输送带、鱼骨花纹输送带、U形花纹输送带、圆柱形花纹输送带、麻点花纹输送带等。或根据用户要求设计，适用于小于30度倾角的粉状、颗粒状、及块状物料输送。 三、品种

Patterned conveyor belt is composed of baseband and patterned parts. Because of different conveying materials and different conveying inclination, patterned shapes and heights are required. Commonly used pattern conveyor belt varieties such as: herringbone pattern conveyor belt, octagonal pattern conveyor belt, fishbone pattern conveyor belt, U pattern conveyor belt, cylindrical pattern conveyor belt, dotted pattern conveyor belt, etc. Or design according to user's requirement, suitable for powder, granular and bulk material transportation with less than 30 degrees inclination. Three, varieties

根据覆盖胶性能不同分为普通型、耐热型、耐寒型、耐酸碱型、耐油型等。  四、规格

According to the different properties of covering glue, it can be divided into common type, heat-resistant type, cold-resistant type, acid-alkali-resistant type, oil-resistant type and so on. Four, specifications

（1）带芯材质：普通棉帆布（CC)、涤棉混织帆布(CP)、尼龙(NN)、聚酯(EP)等

(1) Core material: common cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.

（2）带宽：100mm-2000mm

(2) Bandwidth: 100mm-2000mm

（3）布层：2－20层

(3) Layer: 2-20

（4）覆盖胶：工作面：1.5-10mm  非工作面：0mm-4.5mm

(4) Covering glue: working face: 1.5-10 mm non-working face: 0 mm-4.5 mm
