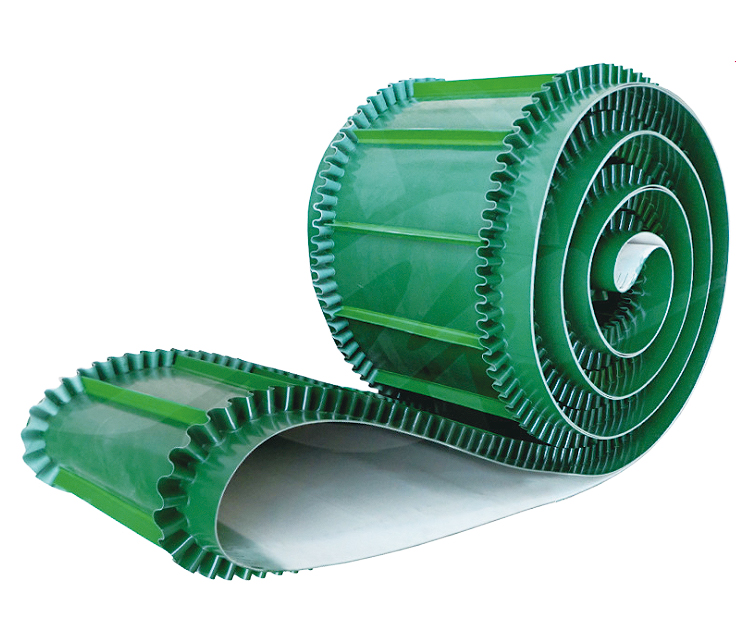

The pattern conveyor belt is composed of belt body and pattern part. Due to the different materials transported and the inclination angle of conveyor, the shape and height (depth) of the pattern are required to be different. The commonly used patterns are as follows:

人字型花纹

Herringbone pattern

特征：带面上有高于带体的“人”字型花纹，花纹可是开口也可是封闭的，每一种花纹又可分为高、中、低三种。

Features: there is a "human" shaped pattern on the belt surface which is higher than the belt body. The pattern can be opened or closed. Each pattern can be divided into three types: high, medium and low.

用途：适用于≤40度倾角的粉状、颗粒状、小块物料输送、也可输送袋装物料。

Application: it is suitable for conveying powder, granular and small pieces of materials with inclination angle ≤ 40 degrees, and also can transport bagged materials.

条状花纹

Striped pattern

特征：带面上横有高出带体的条状花纹，花纹分为高、中、低三种，每种花纹按排列间距可分为疏、密等形式。

Features: there are strip patterns on the belt surface which are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.

用途：适用于≤30度倾角的水平输送包装物。若在成槽情况下，可代替人字型花纹。

Application: it is suitable for horizontal transportation of packaging materials with inclination angle ≤ 30 degrees. If it is grooved, it can replace herringbone pattern.

粒状花纹

Granular pattern

特征：带面上有高出带体或凹嵌入带体的粒状花纹，也可将凹坑制成方孔形或棱形和布纹形。

Features: there are granular patterns on the belt surface that are higher than the belt body or concave embedded into the belt body, and the pits can be made into square hole shape, prism shape and cloth pattern shape.

用途：凸粒状花纹适用于软包装物或需有抓着力的物料输送（如纸板箱）或无滑动输送。

Application: the convex and granular pattern is suitable for conveying soft packing materials or materials with grasping force (such as cardboard box) or no sliding conveying.

凹坑形粒状花纹适用于≤45度倾角的粒状物输送。

The concave granular pattern is suitable for conveying granular materials with inclination angle ≤ 45 degrees.

扇形花纹

Fan pattern

特征：带面上有呈半扇形（或1/4圆型）花纹。当胶带成槽时花纹合扰成扇形（或半圆形）、属高花纹类。

Features: the belt surface has a half fan-shaped (or 1 / 4 round) pattern. When the tape is grooved, the pattern is fan-shaped (or semicircular) and belongs to high pattern type.

用途：适用于≤60度大倾角输送粉、颗粒及块状物料。

Application: it is suitable for conveying powder, granule and block material with angle ≤ 60 degrees.

花纹输送带具有使用范围广、占地面积小、无转运点、减少土建投资、维护用度低、输送量大等特点。其广泛用于煤炭、矿山、电力、冶金、化工、轻工、食物等领域输送物料。

The pattern conveyor belt has the characteristics of wide application range, small floor area, no transfer point, less investment in civil engineering, low maintenance cost and large conveying capacity. It is widely used in coal, mining, electric power, metallurgy, chemical industry, light industry, food and other fields to transport materials.
