食品级输送带要留意哪些问题?

来源:http://www.huafengxiangsu.com 时间:2021-07-20 16:07:30 浏览次数:0
1、送料方向应与胶带运转方向分歧。为减少落料时对胶带的冲击,采用溜槽减少落料距离;胶带受料段应缩短托辊间距和采用缓冲托辊为漏料,皮带应采用柔软、适中的挡板,防止挡板过大,划伤输送带的皮带外表。
1. Feeding direction should be different from belt running direction. In order to reduce the impact of blanking on the belt, chute is used to reduce the blanking distance; In the receiving section of the belt, the distance between rollers should be shortened and the buffer roller should be used for material leakage. The belt should use a soft and moderate baffle to prevent the baffle from being too large and scratching the belt surface.
2、不同型号、规格的白色食品级输送带不应在一同运用,其接头应该采用胶接法。
2. Different models and specifications of white food grade conveyor belt should not be used together, its joint should be glued.
3、输送带的运转速度不应超越2.5m/s,结块度大、磨损大、采用固定梨卸料的物料应尽量低速装置。
3. The running speed of the conveyor belt should not exceed 2.5m/s, and the materials with large caking degree, large wear and fixed pear discharge should be equipped with low speed device as far as possible.
4、食品级输送带在运用中应留意以下事项:

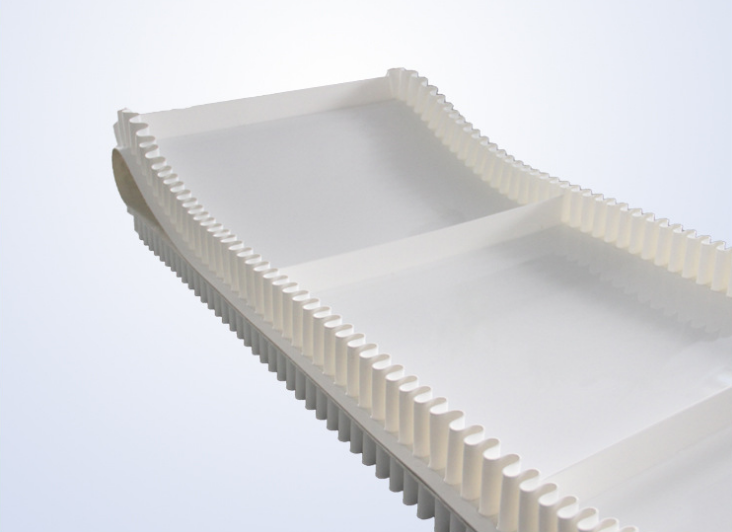

食品级输送带
4. Food grade conveyor belt should pay attention to the following items in use:
(1)为避免托辊被物料遮盖,形成转动不灵敏,防止漏料卡在滚筒与胶带之间,留意部分活动平稳,但不得油污输送带;
(1) In order to avoid the idlers being covered by the materials, the rotation is not sensitive, and the material leakage is prevented from being stuck between the roller and the belt. Pay attention to the smooth movement of some parts, but the belt should not be contaminated;
(2)避免带负荷起动;
(2) Avoid starting with load;
(3)皮带起跳跑偏,采取措施纠正;
(3) Belt take-off deviation, take measures to correct;
(4)发现胶带部分破损,应该用人工棉及时修补,以免扩展;
(4) If the tape is damaged, it should be repaired with artificial cotton in time to avoid expansion;
5、保送机驱动滚筒直径与输送带布层的关系、驱动滚筒的匹配、改换滚筒与滚筒槽角的请求等,应依据运输车的设计规则合理选择。
5. The relationship between the diameter of the driving roller and the cloth layer of the conveyor belt, the matching of the driving roller and the request of changing the groove angle between the roller and the roller should be reasonably selected according to the design rules of the transport vehicle.
6、依据应用条件,合理选择输送带的类型、构造、规格和层数。
6. According to the application conditions, the type, structure, specification and layer number of conveyor belt should be reasonably selected.
