（1）周长：即白色输送带一周的长度，新机器没有配置皮带，那就需要告诉我们，机器主被动滚筒直径，两个滚筒的距，张紧调节范围。
(1) Perimeter: that is, the length of a white conveyor belt. If the new machine is not equipped with a belt, it needs to tell us the diameter of the active and passive rollers, the center distance between the two rollers, and the tension adjustment range.
（2）宽度：就是白色输送带的实际宽度，这个是根据输送设备来。
(2) Width: the actual width of the white conveyor belt, which is based on the conveyor equipment.
（3）厚度：在知道选型的情况下，需要告知我们输送带定制的厚度是多少，滚筒直径是多少。每一家厂家生产出的卷料，都有自己的实际厚度，在适合滚筒直径运转的情况下，选择合适的厚度。
(3) Thickness: when we know the type selection, we need to tell us the customized thickness of the conveyor belt and the diameter of the roller. The coil produced by each manufacturer has its own actual thickness. In the case of suitable drum diameter operation, select the appropriate thickness.
（4）花纹：输送带定制有很多种花纹，因此在选择花纹带时，务必跟厂家图片核对，这样能采购到准确的花纹，特别是不知道叫法时。
(4) Pattern: there are many patterns for customized conveyor belt, so when choosing the pattern belt, be sure to check with the manufacturer's picture, so that you can purchase the accurate pattern, especially when you don't know the professional name.

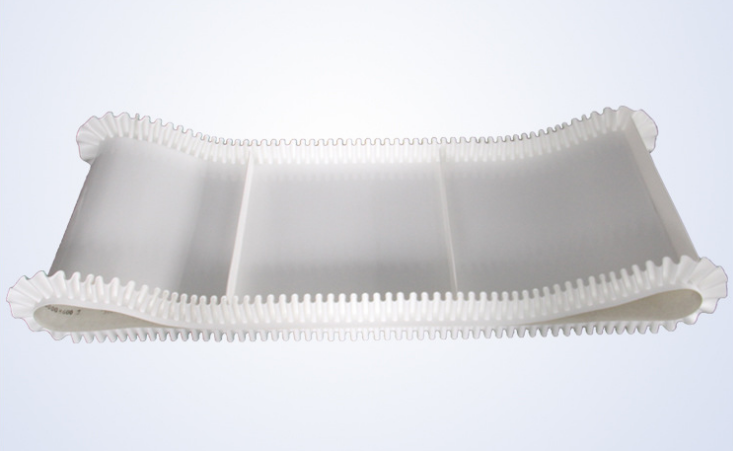

（5）是否需要在输送带上加裙边和挡板，一般爬坡的话都需要。
(5) Whether it is necessary to add skirt and baffle on the conveyor belt is generally required for climbing.
（6）是否需要在输送带上加防跑偏导条，用于防止皮带跑偏。
(6) Whether it is necessary to add anti deviation guide bar on conveyor belt to prevent belt deviation.
（7）辊筒直径：设计输送机的滚筒直径大小不一样，决定输送带厚度不一样。例如滚筒直径是70mm，那只能选择3.0mm及以下厚度，太厚会导致输送带转弯半径不够，输送时造成打滑。
(7) Roller diameter: the roller diameter of the designed conveyor is different, which determines the thickness of the conveyor belt. For example, if the roller diameter is 70mm, only the thickness of 3.0mm and below can be selected. If the roller thickness is too thick, the turning radius of the conveyor belt will not be enough and the belt will slip during conveying.
（8）环境：每一个输送环境不一样，输送带定制的材质不一样。高温环境，要选择耐高温材质；油水分离，要选择耐油材质；无尘环境，要选择防静电材质等。
(8) Environment: each conveying environment is different, and the customized material of conveyor belt is different. In high temperature environment, high temperature resistant materials should be selected; Oil resistant material should be selected for oil-water separation; Dust free environment, to choose anti-static materials.
（9）输送重量：输送产品的重量不一样，决定输送带拉力强度不一样。输送的产品越重，越要的布层抗拉伸强度要求不一样，越重的产品，需要的布层越多，拉力强度越大。
(9) Conveying weight: the weight of conveying products is different, which determines the tensile strength of conveyor belt. The heavier the product is, the higher the tensile strength of the fabric is. The heavier the product is, the more fabric is needed, and the higher the tensile strength is.
（10）输送产品：输送产品的不一样，输送带定制材质选择不一样。输送食品，要选择食品级输送带；输送电子产品，要选择防静电输送带；输送有动植物油或者工业油的产品，需要选择耐油输送带等。
(10) Conveyor products: conveyor products are different, conveyor belt customized material selection is different. To transport food, we should choose food grade conveyor belt; To transport electronic products, choose antistatic conveyor belt; For the transportation of animal and vegetable oil or industrial oil, it is necessary to choose oil resistant conveyor belt.
The most important thing to buy products is quality. Choosing merchants is honesty. Shandong conveyor belt is made to order. We sincerely provide excellent services for our customers. Welcome to our website: https://www.huafengxiangsu.com Below message consultation
